Ufficiale: Singer 911

beckervdo · 10 Marzo 2011

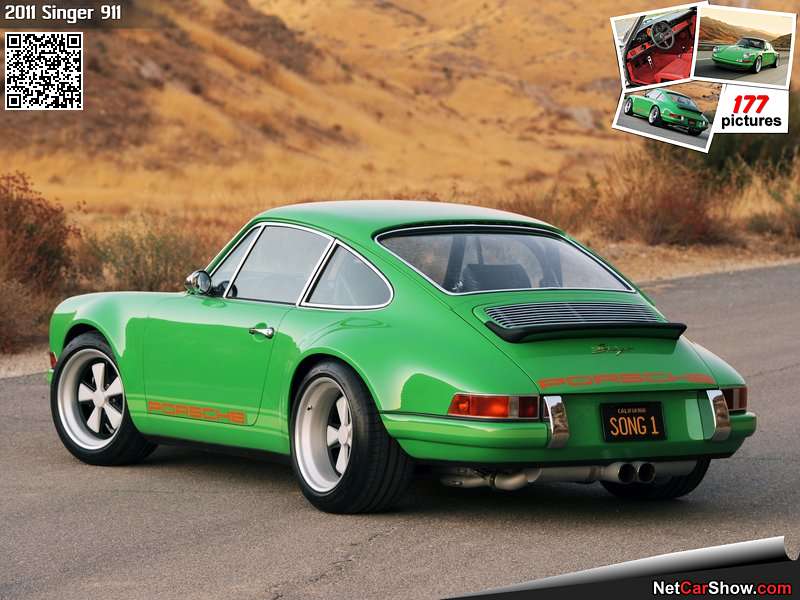

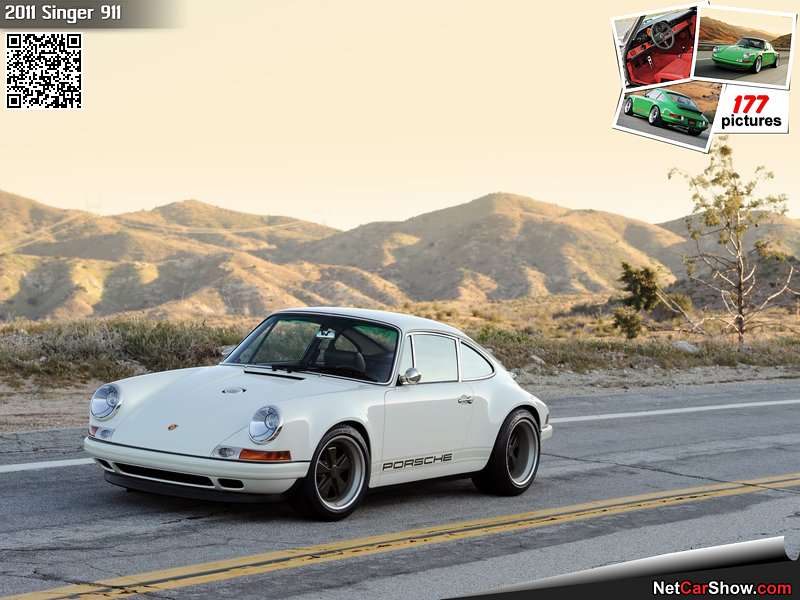

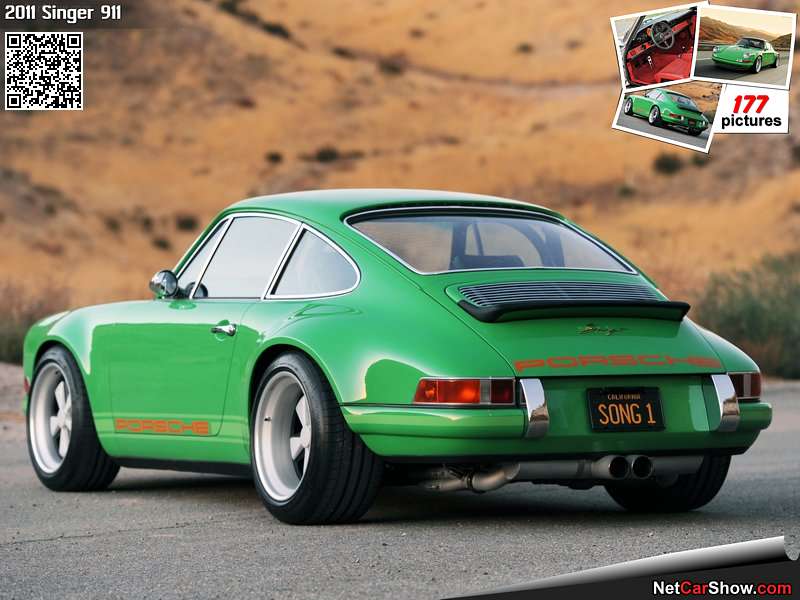

Gallery Completa Singer 911

The Singer 911 is no mere imitation, clone or retro-hot rod, but a re-interpretation and rebirth of the early performance-focused 911's. The new vehicle is the result of a fusion between the purity of the original 911 and modern materials, design, and updated technologies, and aftermarket experience into a unique sports car that recaptures the essence of the early 911's golden age.

Unibody and Suspension

Beginning with any longer wheelbase 911 (1969 to 1989) donor car, the Singer 911 is stripped to its shell to begin reinvention.
To optimize suspension performance add rigidity to the unibody, the 911 donor car's structure has been thoroughly reinforced with a labor intensive stitch welding procedure and the addition of a lightweight integral backbone structure that helps further improve the chassis torsional rigidity. A developmental carbon-fiber second skin further aids this rigidity. The benefits of such measures to ride and handling given the improvements in unibody's resistance to twisting are vast, as the suspension is converted from torsion bars to the McPherson strut and Carrera SC rear trailing arm with coilover set-up seen on vintage racing 911's. Moton dampers with remote oil reservoirs and Eibach springs are used at all four corners and offer multiple settings for ride and handling that the steel shell can now fully exploit. The Singer 911 will also benefit from extensive use of Smart Racing suspension products, such as multi-adjustable anti-roll bars, suspension bushing that help maintain correct geometry.
A Jerry Woods Enterprises electric/hydraulic power steering system is fitted to the Singer 911 that maintains the vital 911steering feel and feedback while helping quicken the steering reactions as compared to the original ZF rack and pinion.
The racing 911's were famous for their braking ability and making up distance on the competition in the corners. The Singer 911 is equipped with competition-proven Brembo calipers (4-pot) and rotors that are derived from the 917 and 930 models. The brakes will be peeking out from behind period-evoking Zuffenhaus, lightweight, five-spoke, three-piece forged aluminum wheels. The 17 x 9-inch front wheels are wrapped in sticky, modern Michelin Pilot Sport Cup tires measuring 225/45/17 and the rear 17 x 11-inch wheel wears 275/40/17 rubber.

Drivetrain

The Singer 911 utilizes the most evolved air/oil cooled 911 engine from the 993. However, the goal with the stock 3.6-liter engine was to develop it into the most modern rendering of the air/ oil cooled engine concept. With the help of U.K.-based, Ninemeister, masterminded by engineer, Colin Belton, and constructed in San Francisco by famed engine builder Jerry Woods Enterprises, the stock 3.6-liter engine is rebuilt to displace 3.82 liters. The engine has been recreated with premium components successfully developed and proven through Ninemeister's racing exploits. The Singer 911's engine achieves its displacement with Ninemeister 103mm pistons and cylinders, the 76.4mm crankshaft of the 997 GT3, and the 132mm lightweight titanium connecting rods. The large bore, short stroke combination can spin to 8000 rpm, but offers a broad, flexible torque curve. The key to the power are the highly developed Ninemeister billet aluminum heads that allows this 12-valve engine to compete with the power of water-cooled 24-valve engines found in the latest version of the GT3. A completely re-engineered component the billet aluminum Ninemeister heads are stronger, more resistant to extreme heat, and feature the latest thinking in port design to vastly improve the breathing and output of these motors.
A Ninemeister valvetrain with valves, springs, and cam profiles have been designed to maximize the cylinder heads port flow capabilities and are a vital piece of the combination. Ninemeister's individual throttle body induction provides maximum tunable power to each cylinder with eye-popping throttle response, and most importantly perhaps, the sweetest 911 exhaust growl imaginable. More importantly, the engine will be managed by an advanced Motec M800 ECU that also adds launch control, traction control, data logging capability -- all electronic features never seen on the original 911's.
For customers, the engine will be available in two states of tune - luxury and touring. Singer will have a tune producing about 360hp with a broad torque curve. For higher performance, a more track focused state of tune offers 425 hp and 340 lbs. ft. of torque. A 997 GT3R oil pump moves oil through the Singer 911's high capacity dry sump system will be improved with an enhanced fan-assisted cooling system. Race-car spec stainless steel braided hose and fittings are used throughout the Singer 911. The bulletproof 3.82-liter engine combination is matched to a nearly indestructible six-speed G50 transaxle that has been revised with a close ratio cogs, and a limited slip differential. A twin plate carbon clutch capable of withstanding 700 lbs. ft. of torque and a lightweight flywheel help transmit engine power to the transmission. The Singer 911 expels engine fumes through lightweight stainless steel heat exchangers that flow to 100 cell catalytic converters, and a Singer Design stainless steel muffler that helps enhance the motor's sonorous tone.
The Singer's performance will be scintillating as the vehicle will get down to 2400 lbs. curb weight providing a nimble, connected and thoroughly fulfilling sportscar experience. With a power to weight ratio of 5.6 lbs per horsepower, the 425 hp Sports version explodes from 0 to 60 in 3.9 seconds, 0 to 100mph in 8.5 seconds, and exceeds a top speed of 170 mph.

Interior
As for the interior, the Singer 911 features an original 911-style instrument cluster with all-new gauges set in a revised dash panel. The Singer 911 interior is not carpeted in keeping with the traditional feel of the spartan race-focused 911's (R, ST, and RSR) but will be trimmed in supple dark racing green leather. Thin, lightweight but effective sound deadening measures controls interior noise while still maintaining the aural persona of the early 911's. A re-engineered vintage 911 Recaro seat uses structural carbon fiber in addition to offering fully electric operation and premium leather surface covering. Finally, no vintage, performance focused interior would be complete without a MOMO steering wheel and the Singer 911 features a new interpretation of the company's classic 'Monza' wheel.
Acknowledging the advances in conveniences missing in the original 911, modern amenities such as a lightweight electric air conditioning system, Garmin Navigation system, ipod interface and even Bluetooth connectivity are also available in the Singer 911. Care is taken to add these features while minimizing any weight penalty by utilizing a lightweight wiring harness for all accessories and engine management.

Exterior
Extensive use of composite materials (carbon fiber) for the entire vehicle exterior will leave the door panels as the only original sheetmetal on the Singer 911. The composite materials form an exterior for the Singer 911 that re-invents while emulating the early 911 RSR and ST's most prominent feature; the fender flares. These flares dictated the aggressive stance and sense of performance that these early cars conveyed even while standing still. Capitalizing on modern materials technology, the Singer 911 body makes extensive use of carbon fiber panels, and autoclave pre-preg Kevlar honeycomb in the creation of stunning, but very lightweight exterior pieces. The Singer 911 prototype is finished in vintage-appearing Singer Racing Orange. Other colors will be available to customers. In addition to the modern interpretation of the lightweight philosophy, the exterior will be updated with a uniquely designed HID headlamp arrangements that greatly improves exterior lighting.
The Singer 911's aerodynamic performance is improved with a front lip spoiler that reduces front end lift by 12 percent, and a speed sensitive rear spoiler that retracts back into the body (first seen on the 964).

The Feeling
Forty-six years later, the Singer 911 prototype is the ultimate validation of the model that defined a brand, a segment, and became a cultural icon to generations.
Clicca per allargare...

Via NetCarShow

Io non parlo

elkine · 10 Marzo 2011

Bellissima, ci andrei volentieri in giro (verde da sbavo vero e proprio)

teomat5 · 10 Marzo 2011

beh è la stessa idea della Shelby cobra, e me le metterei entrambe in garage o in salotto

BLACKONE · 10 Marzo 2011

Senza parole

Golia · 10 Marzo 2011

I pound it

beckervdo · 10 Marzo 2011

Circa 200'000 Dollari il prezzo

teomat5 · 10 Marzo 2011

beckervdo ha scritto:

Circa 200'000 Dollari il prezzo
Clicca per allargare...

'inchia

fabio320d · 10 Marzo 2011

pazzesca

addlightness · 11 Marzo 2011

cippy89 · 11 Marzo 2011

Spettacolo!!!!

actarus8v · 11 Marzo 2011

sbav

nik82 · 11 Marzo 2011

La voglio arancio!

fasolini6 · 11 Marzo 2011

La voglio a gas!

beckervdo · 11 Marzo 2011

su youtube c'è solo il video del concept che è quella Arancio. Quella verde è il modello di serie, non vedo l'ora di sentire il flat six in moto!

poliziottesco · 13 Marzo 2011

questa roba piu' la guardo piu' rimango estasiato

davvero da sbavare e dire wow... poi pero' dopo aver messo insieme:

3.82-liter normally aspirated flat six 8000 rpm limit

425 BHP / 340 lb. ft. torque

• 0-60 mph – 3.9 seconds

• 0-100 mph – 8.5 seconds

• Top speed 170+ mph

Getrag G50 six-speed close ratio gearbox

• Lightweight flywheel and carbon twin-plate clutch

e' cosi', si rimane ammutiti

dieselteox · 13 Marzo 2011

decisamente accattivante.....bella bella

Golia · 13 Marzo 2011

Io pur rovinandola,avrei osato qualcosa di più moderno e prestazionale,ad esempio il motore della turbo odierno...

beckervdo · 13 Marzo 2011

Golia ha scritto:

Io pur rovinandola,avrei osato qualcosa di più moderno e prestazionale,ad esempio il motore della turbo odierno...
Clicca per allargare...

Eh no...l'ideale era mantenere tutto ad ARIA /emoticons/biggrin@2x.png 2x" width="20" height="20" />

Golia · 13 Marzo 2011

Perchè?

beckervdo · 13 Marzo 2011

Golia ha scritto:

Perchè?
Clicca per allargare...

Perchè la 911 per molti porschisti è morta con il passaggio al raffreddamento a liquido.
