Ufficiale: Kia Optima Hybrid

beckervdo · 17 Novembre 2010

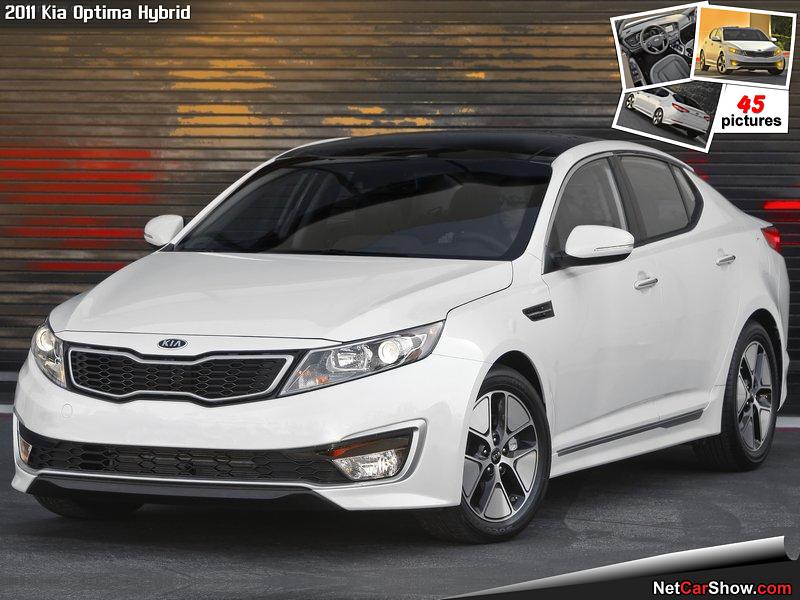

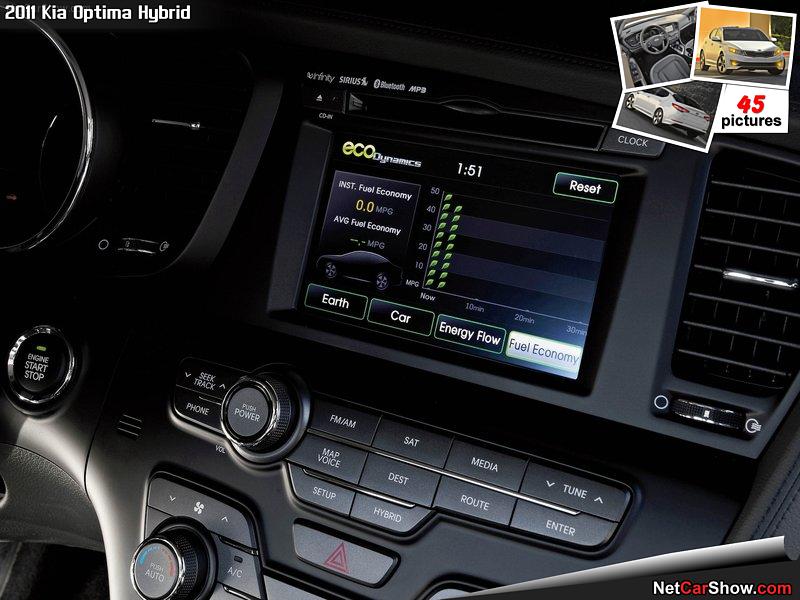

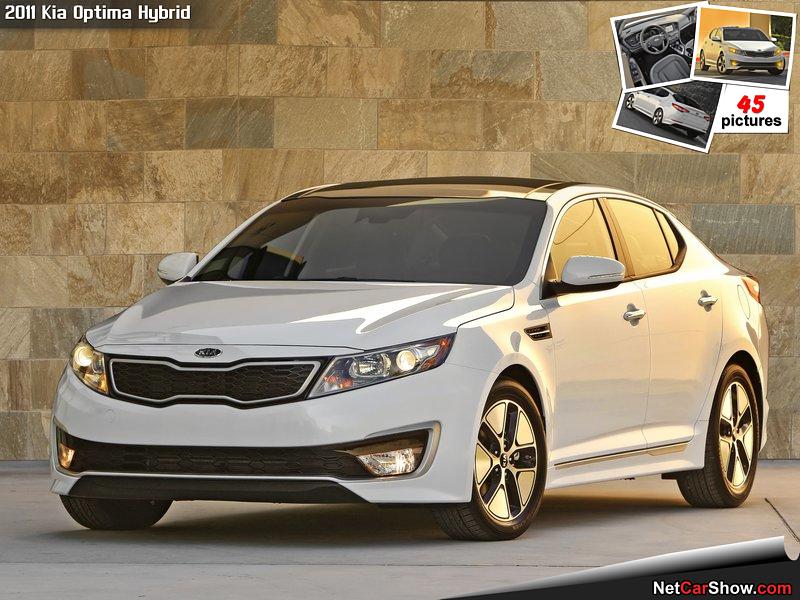

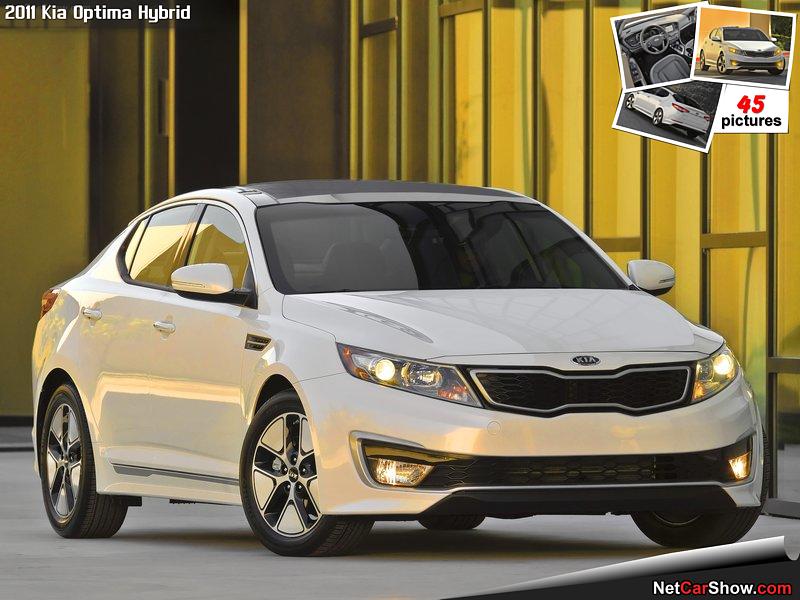

Gallery Completa Kia Optima Hybrid

Durable Lithium Polymer Battery
The 2011 Kia Optima Hybrid's outstanding efficiency is due in large part to the use of a lithium polymer battery, which was developed in South Korea with partner LG Chem. The power and energy density of this new battery type allowed Kia engineers to create a lighter and more compact battery pack, with the 30 kilowatt battery pack weighing just 95.9 pounds - 28 pounds less than the 2011 Toyota Camry Hybrid's nickel metal hydride pack - which aids fuel economy and also helps to maximize Optima's cargo space.
The Kia Optima Hybrid's battery will hold its charge up to 25 percent longer than hybrids with nickel metal hydride batteries, so the battery is more likely to have usable energy available even if it has not been in use. Both fuel consumption and emissions are cut, allowing more electric starts and drive-aways. With that improved efficiency, more of the recovered kinetic energy and charging energy from the engine is available to move the car as necessary, which allows the vehicle to provide electric driving assist more often and for a longer period. Lithium polymer also has less of the self-discharge characteristic found in most rechargeable batteries.
Unique Hybrid Architecture
Unlike most current systems on the market, the Kia Optima Hybrid powertrain is configured with a unique architecture. Compared to the power-split hybrid systems found on vehicles from Toyota or Ford, the Kia Optima Hybrid uses a Transmission-Mounted-Electric-Drive (TMED) layout with the electric motor separated from the transmission gear-set. Offering several advantages, this modular layout includes more efficient powertrain packaging, use of many "off-the-shelf" components such as the existing six-speed automatic transmission found on the 2.4-liter GDI Optima, and reduced engineering investment. This also allows for other possible future combinations including the application of more powerful motors and higher capacity batteries.
The Kia Optima Hybrid also is among the first full hybrid systems on the market to use a typical step-ratio automatic transmission. The extremely compact six-speed automatic that debuted on the 2011 Kia Sorento CUV is carried over to the hybrid largely unchanged. An external electrically-driven oil pump also has been added to provide the hydraulic fluid pressure needed to keep the clutches engaged when the vehicle is in idle stop mode.
The Kia Optima Hybrid's electric motor is hard-coupled to the input of the transmission and equipped with a permanent magnet synchronous electric traction motor that produces 40.2 horsepower (30 kilowatt) and 151.2 pound-feet of torque when electric only, and an impressive 206.2 horsepower and 195.4 pound-feet of torque when in hybrid mode. This replaces the torque converter, with a multi-disc clutch is fitted between the engine and motor, enabling the gasoling engine to be de-coupled from the powertrain for idle stop and electric drive modes. Employing this layout allows the entire package, including a torsional damper, to fit virtually within the same area as the traditional torque converter.
Another unique component of the Kia Optima Hybrid is the Hybrid-Starter-Generator (HSG). This 8.5 kilowatt starter motor-generator is belt-driven off the Theta II engine and operates at the same 270 volts as the electric traction motor and the lithium polymer battery, but does not provide any tractive effort to the vehicle. In its place, the HSG is used only to start the engine and then to charge the hybrid battery.
One of the main benefits of the hybrid electric powertrain provides is the capability to recover energy lost during braking and store it for use during acceleration and cruising, so when the brake pedal is applied, the engine is decoupled from the traction motor and gives no drag on the vehicle. The motor is then used as a generator to recharge the hybrid battery. Converting the kinetic energy into electrical energy rather than thermal energy through the friction brakes also reduces the wear on the brake linings so they last longer. When conditions require emergency stopping or driving on hills, the extra reliance on regenerative braking allows for the brakes to be more effective.
The Kia Optima Hybrid uses an electronically controlled brake system to determine the driver's braking needs based on the degree of pedal application, which is then converted to a total brake torque requirement. The hybrid system control then detects the current level of battery charge, vehicle speed and other conditions to determine how much regenerative braking is possible under current circumstances. The brake control system then receives the maximum regenerative braking level to manage the friction braking torque so that total net torque is equal to the driver's needs.
Like all other 2011 Optimas, the hybrid uses an Electric Power Assist Steering (EPAS) system that instantly provides boost and only when it is needed during steering maneuvers. Reducing the extra weight compared to an engine-driven hydraulic assist, the EPAS is independent of the engine and also provides assistance when the engine is not running, such as during idle stop or electric drive mode.
The Kia Optima Hybrid also features an electrically-driven air conditioning compressor so that climate control can be maintained even when the engine is off. Like electric power steering, the electrically-driven air conditioning compressor allows for more precise on-demand control reducing the overall load on the powertrain, cutting fuel consumption.
Taking advantage of the instant and continuously available torque from the electric motor, Kia engineers modified its popular 2.4-liter Theta II engine to operate on an Atkinson cycle, raising the compression ratio by 20 percent to maximize its efficiency and achieving a 10-percent fuel saving over a regular Theta engine. This cycle generates a little less torque, but the electric motor compensates for any loss and consequently, the Kia Optima Hybrid's overall power and torque outputs are greater than the regular model.
With the Optima also weighing in as one of the lightest cars in the segment, high performance and outstanding fuel efficiency are a natural result. The lightweight architecture of the new Optima platform, combined with the lightweight lithium polymer battery pack, brings the Kia Optima Hybrid in at just 3,490 pounds, 230 pounds lighter than the 2011 Ford Fusion Hybrid.
Beyond the Kia Optima Hybrid's innovative powertrain, Kia's engineers addressed all aspects of vehicle efficiency including aerodynamics and rolling resistance. The Kia Optima Hybrid features unique exterior aero refinements, a lower ride height, an active air flap system, lower drag wheels, and underbody aero tuning to reduce drag, while low rolling resistance tires also help increase efficiency. The Kia Optima Hybrid's drag coefficient is an exceptionally low 0.26, among the best in the world.
The end result of the Kia Optima Hybrid's highly-efficient powertrain, low-rolling resistance tires, and clean aerodynamic signature is truly exceptional highway fuel efficiency, the best of any mid-size hybrid sedan in the market.
In addition to offering consumers class-leading fuel economy, the 2011 Kia Optima Hybrid also delivers high level of style, comfort and refinement. Ensuring Kia's newest addition stands out from the crowd, the hybrid model has unique features to it, including front grille design, 16-inch alloy wheel design, headlamp design, fog lamps, heated outside mirrors, chrome accents on exterior door handles, front and rear lower bumpers and side sills, LED tail lamp design and a rear lip spoiler.
In addition to the extensive list of standard convenience features and stylish appointments found on the well-equipped Optima LX A/T trim, consumers opting for the Hybrid will enjoy additional standard features, including, eight-way power adjustable driver's seat, dual zone automatic temperature control with rear vents, push-button start with smart key, leather-wrapped steering wheel and shift knob, automatic up/down on front windows, chrome interior door handles, glove box illumination, rear reading lamps, and fixed rear seats with ski pass-through. Virtual Engine Sound System (VESS), standard on the Kia Optima Hybrid, plays a pre-recorded engine sound during electric-only operation to notify people outside the vehicle that it is approaching.
The 2011 Optima Hybrid also offers a Premium Technology Package, key features include a panoramic sunroof, unique 17-inch alloy wheel design, four-way power adjustable front passenger's seat, driver's seat memory, heated and cooled front seats, heated rear seats and steering wheel, HID headlamps with automatic leveling, leatherette-wrapped center fascia, auto-dimming rear-view mirror with Homelink™ and compass, a navigation system with back-up camera and SIRIUS Traffic™1, and an eight-speaker Infinity®2 audio system.
Clicca per allargare...

Via NetCarShow

runk · 20 Novembre 2010

Una delle Asiatiche con la linea meglio riuscita....
