Tributo all'Alpina B3S

Discussion in 'BMW Serie 3 E90-E91-E92-E93' started by Gio72, Aug 29, 2011.

  1. magnabuffi

    magnabuffi Presidente Onorario BMW

    15,536
    599
    Nov 6, 2007
    Jesi
    Reputation:
    4,104,908
    130i
    Ma anche su la b3s mi pare di scorgere 2 silenziatori prima dei terminali o sbaglio?

    Inviato dal mio SM-N910F utilizzando Tapatalk

    Last edited by a moderator: Dec 31, 2016
  2. Gio72

    Gio72 Presidente Onorario BMW

    28,985
    2,941
    Jun 3, 2008
    Reputation:
    178,716,931
    G80 M3 Competition
    Infatti!

    In realtà le due linee a valle dei katalizzatori primari confluiscono in un unico risuonatore centrale dal quale poi si sdoppiano nuovamente in uscita: non sappiamo però come sia strutturato al suo interno quel risuonatore e quindi se realmente i flussi di scarico si confondano o vengano comunque tenuti separati (come su tutte le 335i coeve) ;) /emoticons/wink@2x.png 2x" width="20" height="20" />

    Buon anno a tutti!

  3. lorenzo 61

    lorenzo 61 Presidente Onorario BMW

    8,218
    798
    Oct 3, 2006
    Reputation:
    30,260,245
    M4 C
    [​IMG]

    Auguri a tutti!

    Inviato dal mio SM-G900F utilizzando Tapatalk

  4. nivola

    nivola Top Reference

    19,167
    11,757
    Apr 6, 2008
    موليز
    Reputation:
    2,147,483,647
    Bmw 330 Cd (E46),Fiat 500R '73
    Invero a questo non avevo pensato....in realtà non si scorgono (no credo siano i silenziatori quelli che si vedono) ma il tuo ragionamento, calza!! ;) /emoticons/wink@2x.png 2x" width="20" height="20" />

    Esatto...era quello che volevo dire nel mio messaggio iniziale.

    Naturalmente vale, poi, anche il ragionamento di Leonardo aka @magnabuffi ;) /emoticons/wink@2x.png 2x" width="20" height="20" />

    Buon anno a tutti!! ;) /emoticons/wink@2x.png 2x" width="20" height="20" />

    Dalla foto postata da Lorenzo, sembra che non si scorgano i silenziatori finali e forse ci sarebbe solo il singolo risuonatore di cui sopra. Ovviamente di questo non ho certezze. Trattasi di una mia congettura ;) /emoticons/wink@2x.png 2x" width="20" height="20" />

    Last edited by a moderator: Jan 1, 2017
  5. Gio72

    Gio72 Presidente Onorario BMW

    28,985
    2,941
    Jun 3, 2008
    Reputation:
    178,716,931
    G80 M3 Competition
    Occhio: la foto da ultimo postata da Lorenzo si riferisce al montaggio di uno scarico di un D3 (diesel) ;) /emoticons/wink@2x.png 2x" width="20" height="20" />

  6. nivola

    nivola Top Reference

    19,167
    11,757
    Apr 6, 2008
    موليز
    Reputation:
    2,147,483,647
    Bmw 330 Cd (E46),Fiat 500R '73
    Ahh...ecco. Infatti, dopo il tuo scritto, la curiosità mi ha spinto a leggere il depilant...cosa che non avevo fatto prima!!:mrgreen::mrgreen:

  7. lorenzo 61

    lorenzo 61 Presidente Onorario BMW

    8,218
    798
    Oct 3, 2006
    Reputation:
    30,260,245
    M4 C
    Esatto.Foto scattata frettolosamente dal libro uscito per il cinquantesimo anniversario dell'azienda. E' pieno di belle illustrazioni, storiche ed attuali. Ne posterò diverse nei prossimi giorni.

  8. nivola

    nivola Top Reference

    19,167
    11,757
    Apr 6, 2008
    موليز
    Reputation:
    2,147,483,647
    Bmw 330 Cd (E46),Fiat 500R '73
    Bravo, Lorenzo!! ;) /emoticons/wink@2x.png 2x" width="20" height="20" />=D>

    2 people like this.
  9. lorenzo 61

    lorenzo 61 Presidente Onorario BMW

    8,218
    798
    Oct 3, 2006
    Reputation:
    30,260,245
    M4 C
    [​IMG]

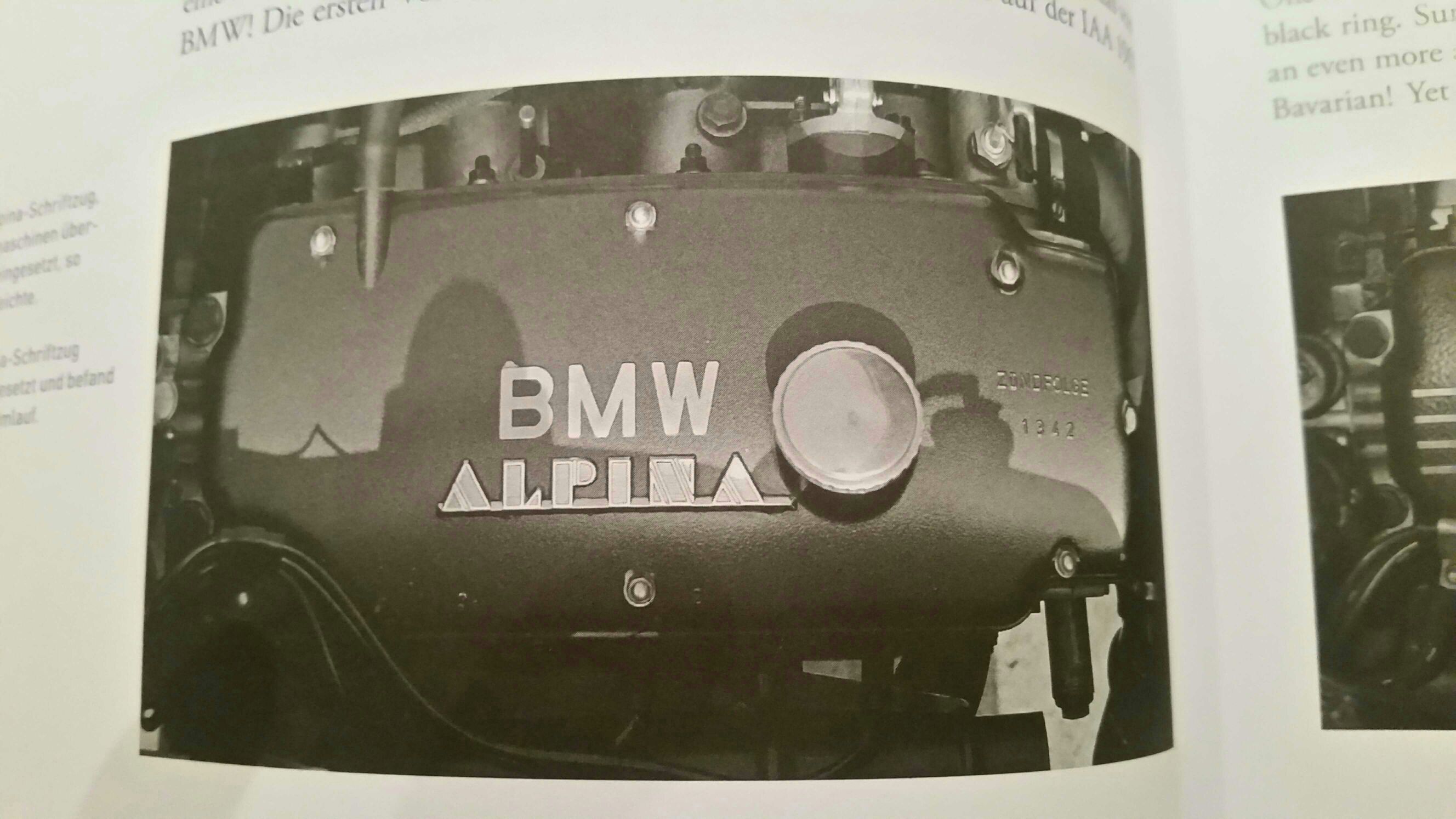

    Anno 1963

    Inviato dal mio SM-G900F utilizzando Tapatalk

  10. lorenzo 61

    lorenzo 61 Presidente Onorario BMW

    8,218
    798
    Oct 3, 2006
    Reputation:
    30,260,245
    M4 C
    [​IMG]

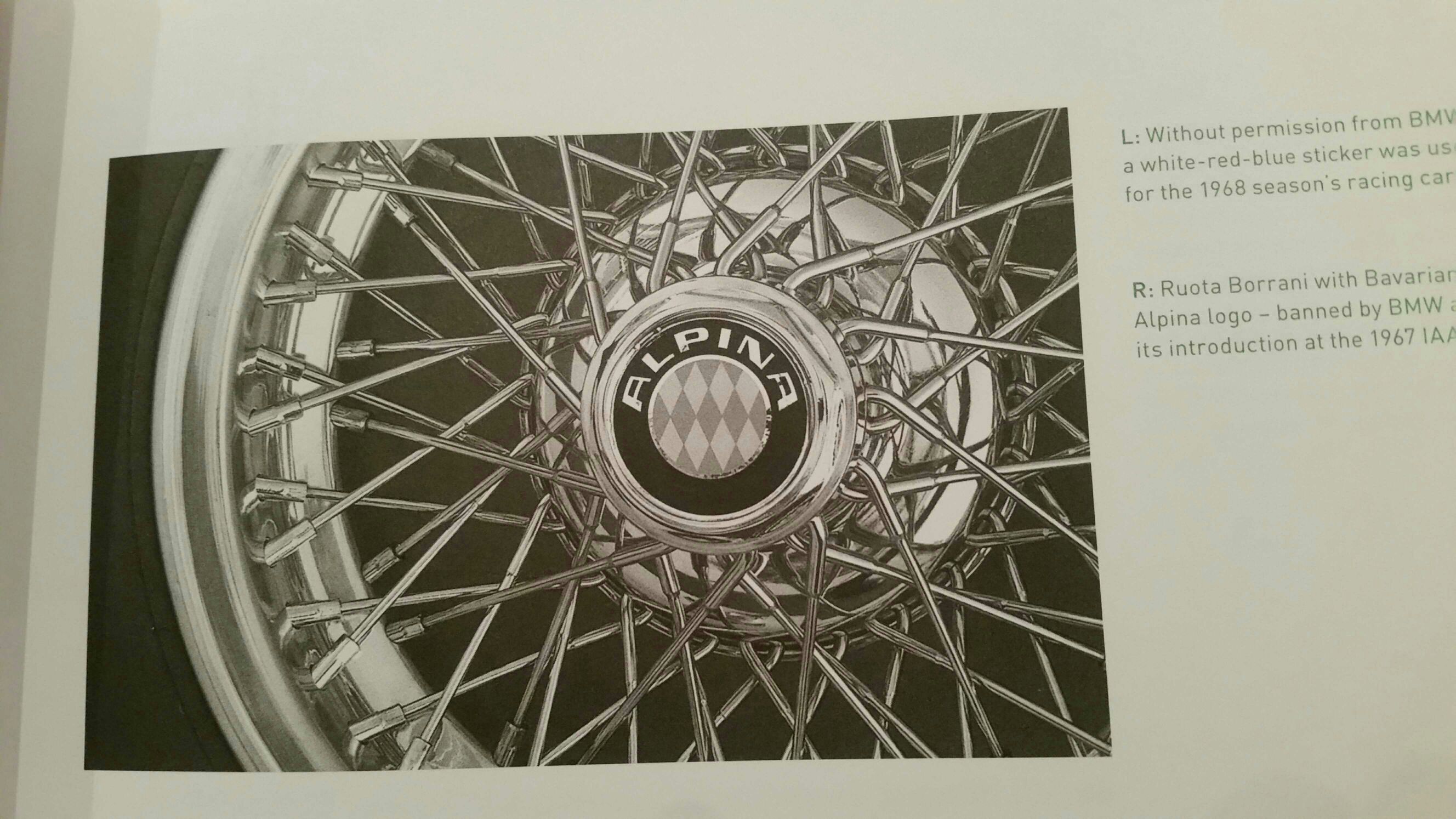

    Come si legge anche nella didascalia questa è una ruota Borrani con logo Alpina.

    Inviato dal mio SM-G900F utilizzando Tapatalk

  11. lorenzo 61

    lorenzo 61 Presidente Onorario BMW

    8,218
    798
    Oct 3, 2006
    Reputation:
    30,260,245
    M4 C
    [​IMG]

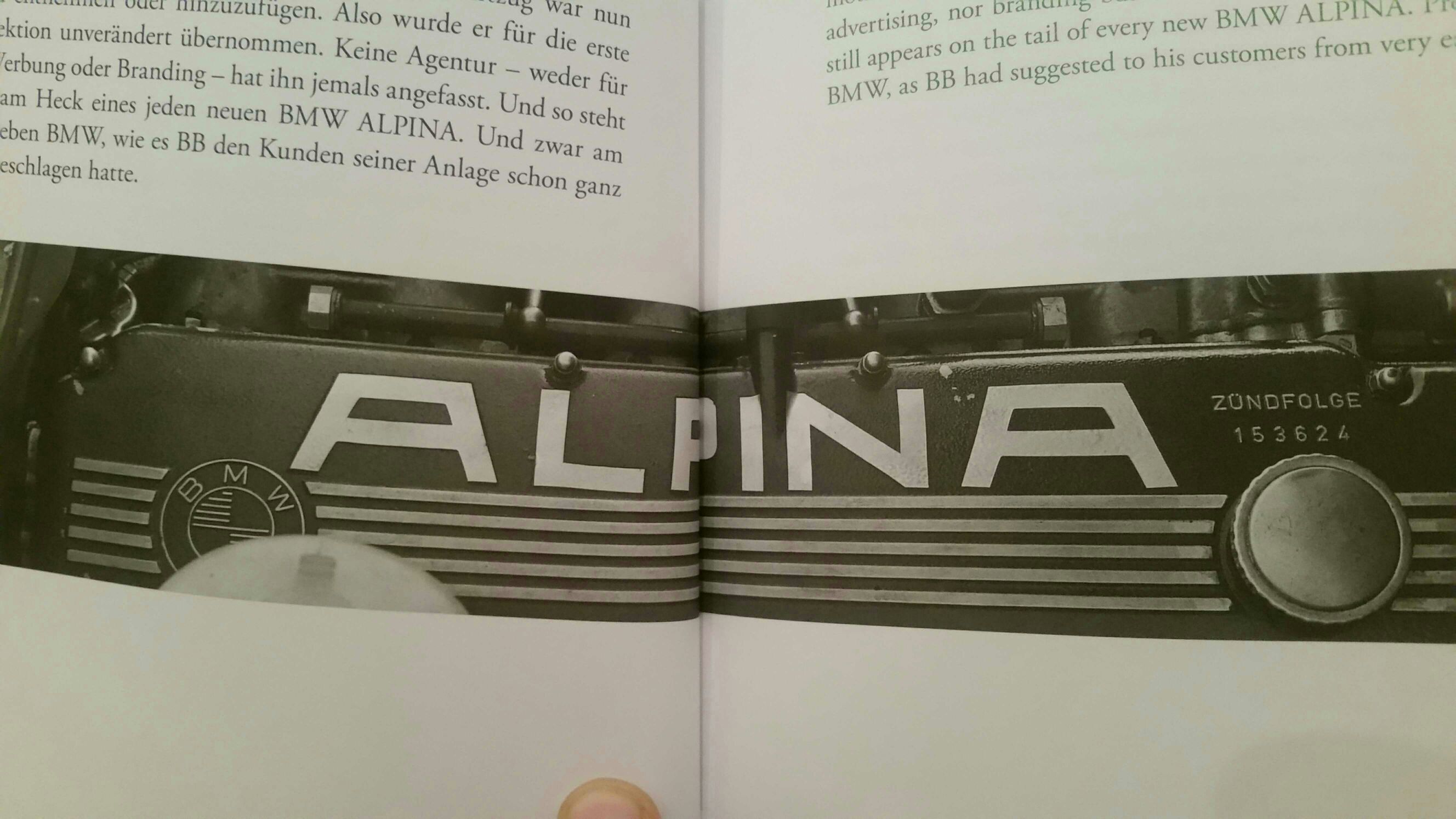

    Il carattere definitivo utilizzato dal 1970

    Inviato dal mio SM-G900F utilizzando Tapatalk

  12. lorenzo 61

    lorenzo 61 Presidente Onorario BMW

    8,218
    798
    Oct 3, 2006
    Reputation:
    30,260,245
    M4 C

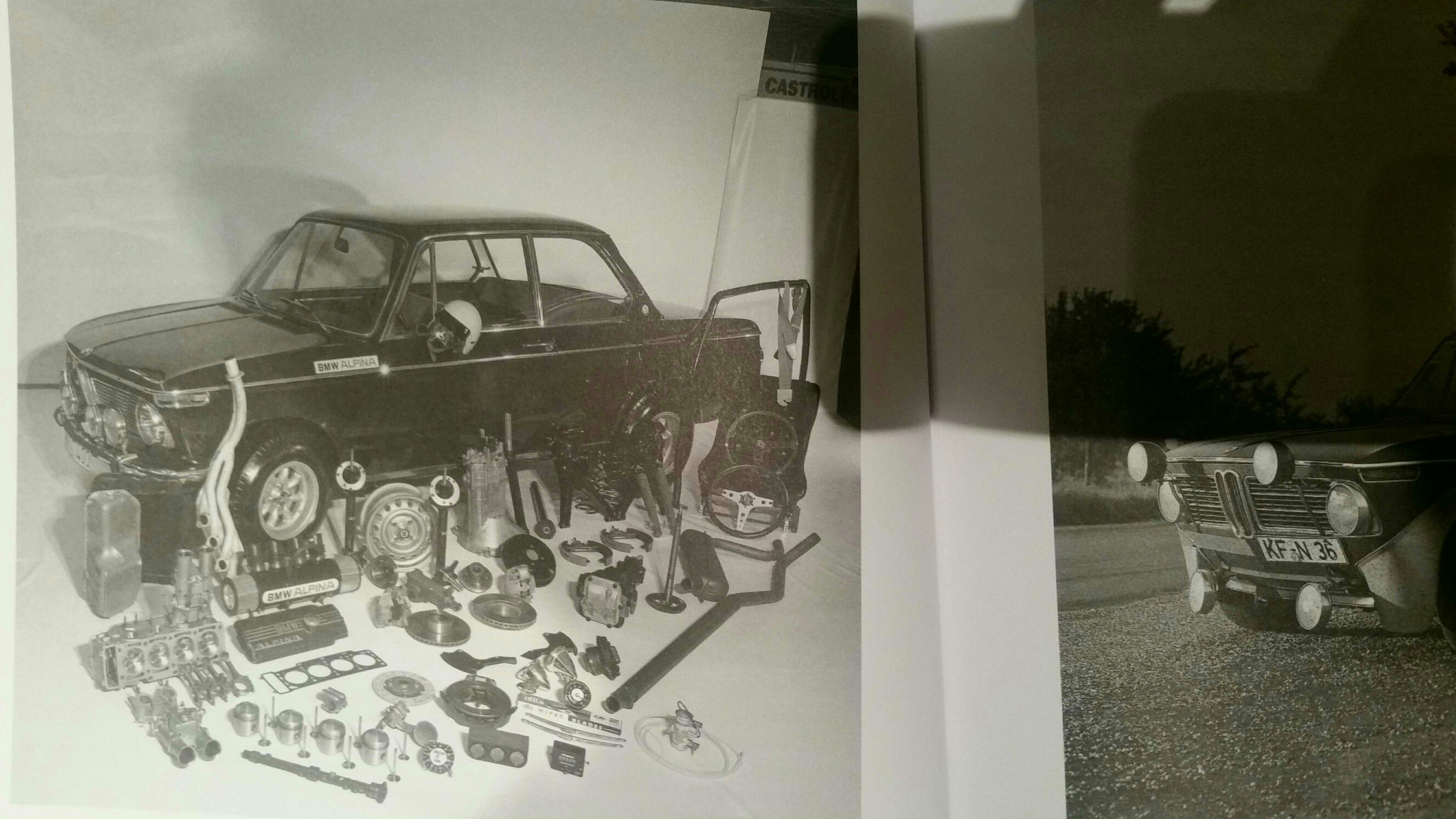

    Continuo il tour fotografico proponendo visivamente gli accessori che Alpina proponeva per la 1602

    [​IMG]

    Inviato dal mio SM-G900F utilizzando Tapatalk

  13. lorenzo 61

    lorenzo 61 Presidente Onorario BMW

    8,218
    798
    Oct 3, 2006
    Reputation:
    30,260,245
    M4 C

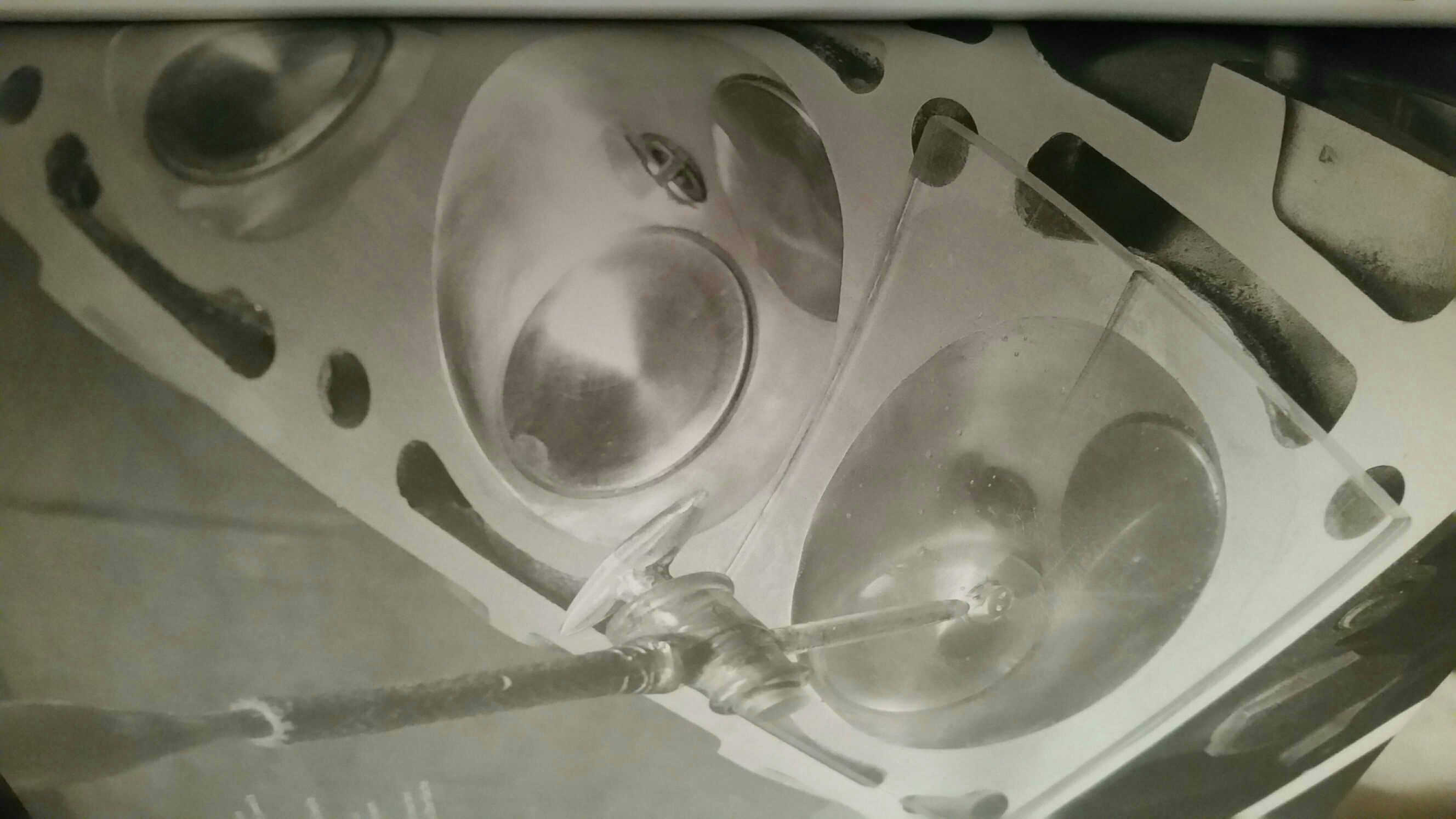

    Cito: all BMW s are Good but some are better than others:

    [​IMG]

    Inviato dal mio SM-G900F utilizzando Tapatalk

  14. lorenzo 61

    lorenzo 61 Presidente Onorario BMW

    8,218
    798
    Oct 3, 2006
    Reputation:
    30,260,245
    M4 C
    [​IMG]

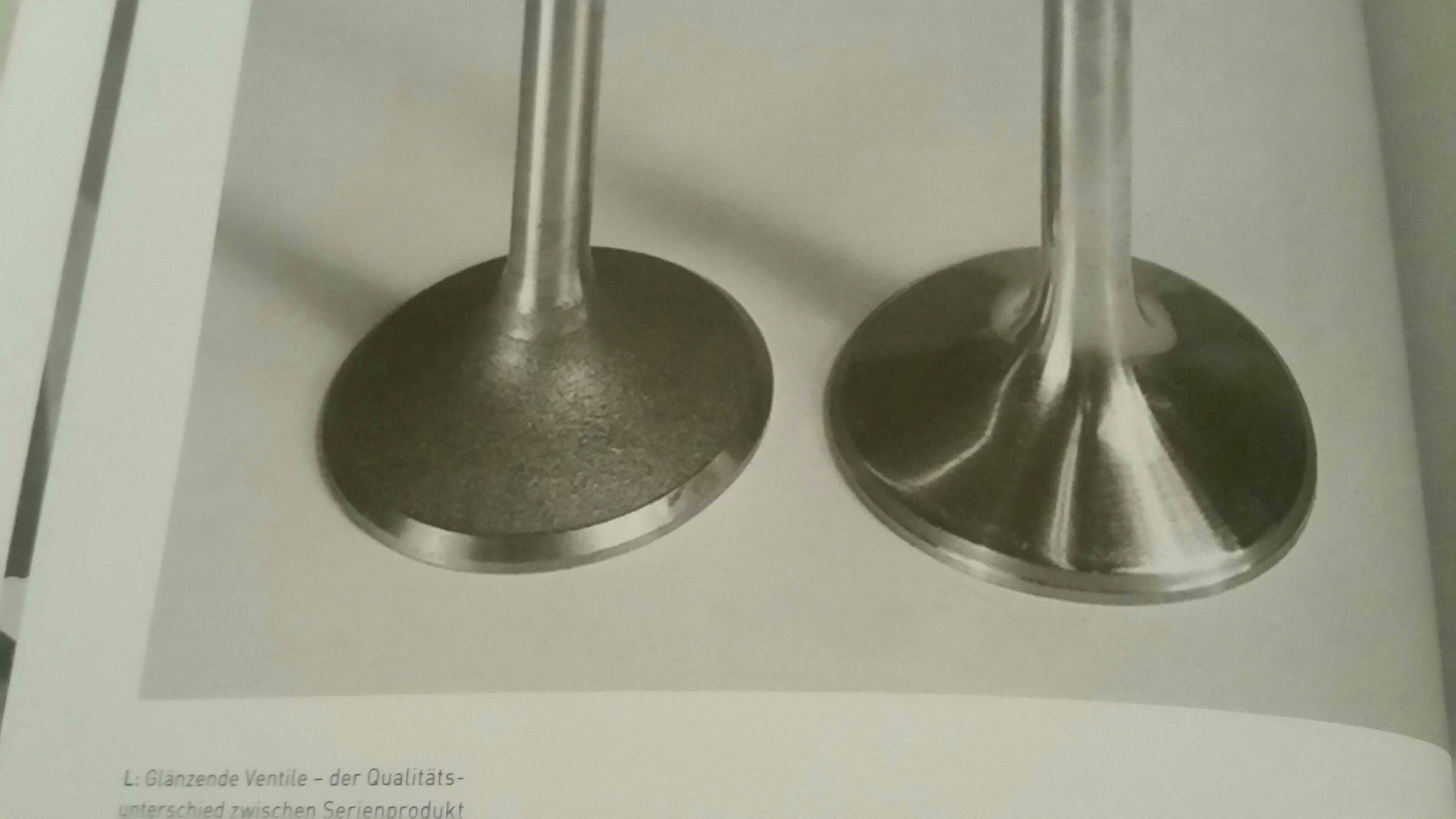

    Valvola di serie a sinistra

    A destra quella lucidata in Alpina.

    Inviato dal mio SM-G900F utilizzando Tapatalk

  15. nivola

    nivola Top Reference

    19,167
    11,757
    Apr 6, 2008
    موليز
    Reputation:
    2,147,483,647
    Bmw 330 Cd (E46),Fiat 500R '73
    Bellissime immagini, Lorenzo!!!=D>=D>

    Grazie!! ;) /emoticons/wink@2x.png 2x" width="20" height="20" />

  16. lorenzo 61

    lorenzo 61 Presidente Onorario BMW

    8,218
    798
    Oct 3, 2006
    Reputation:
    30,260,245
    M4 C
    Grazie Maurizio! Siamo rimasti in pochi ad apprezzare queste cose.

    Guarda la quantità di particolari disponibili per la 1602. Ciascuno porta ad un relativa ottimizzazione tale che la somma degli interventi sia più grande del valore originale. Altro che elettronica!!

  17. apripista987

    apripista987 Direttore Corse

    2,269
    454
    Jan 17, 2011
    Traversetolo (PR)
    Reputation:
    171,500,900
    750iX F01 + Octavia1.5G-Tec + RAM 5.7 V8
    Purtroppo le Alpina oggi hanno solo la centralina modificata e forse il turbo... una volta le valvole erano diverse ecc... mi rileggo la discussione perché se esiste un museo Alpina lo vorrei visitare

    Inviato dal mio divano utilizzando Topatalk

  18. Gabo

    Gabo

    41,006
    5,817
    Jan 17, 2006
    Bassano del Grappa
    Reputation:
    605,999,508
    BIESSE Racing Vicenza
    Alpina fake al giorno d'oggi >:>

  19. lorenzo 61

    lorenzo 61 Presidente Onorario BMW

    8,218
    798
    Oct 3, 2006
    Reputation:
    30,260,245
    M4 C
    Qui, dalle note ufficiali.

    The prerequisite for these impressive values is a high-tech engine which exhibits its own unique characteristics thanks to a significant number of stand-alone features. The goal of the engineers from Buchloe was to achieve excellent responsiveness, high output across the entire rpm range and an improvement in fuel consumption. The ‘Bi-Turbo’ engine configuration arose not only out of tradition. More to the point, this type of turbocharging has the advantage of providing very good response and pick-up due to the low mass moment inertia of the turbocharger’s running gear and sufficient rate of air-flow for spontaneous power delivery.

    The design and construction of the excellent BMW 3.0 litre straight-six cylinder (N55) engine serves as a starting-point for a specially cast aluminium crankcase with Bi-Turbo capable flanges. These enable the mounting of two turbochargers along with required oil and water connections and a close-coupled catalytic converter arrangement. ALPINA specific NGK spark plugs and a forged steel high-strength crankshaft guarantee long-lasting stability.

    Always-on power delivery and excellent throttle response are aided by an electronically controlled bypass valve system. Specially constructed and de-throttled, i.e. flow and cross-section optimised, air intake ducts guide the air with minimal losses from the air intake via the air filter housing to the turbochargers. On the fuel side, a high-performance high-pressure fuel pump ensures the right throughput. Optimal utilisation of the output is provided by a high-capacity intercooler with flow-optimised collector boxes made from aluminium. Coolant cooler, addi- tional separate coolant and engine oil coolers as well as a high-performance 850w cooling fan ensure the thermal stability of the cooling system in all conditions.

    - - - - - aggiornamento post - - - - -


  20. lorenzo 61

    lorenzo 61 Presidente Onorario BMW

    8,218
    798
    Oct 3, 2006
    Reputation:
    30,260,245
    M4 C
    Ritorno a Buchloe febbraio, primi di marzo. Non esiste un museo ma parte dell'azienda è visitabile.

    Ho disseminato molti video, qui ed in altre discussioni con scorci sulle attività svolte.
